LS1046-Space
Performances, Ecosystem & Reduced Power
• Quad 64-bit Arm® Cortex® A72 cores, Up to 1.8GHz
• NXP LS1046 based
• 2MB total L2 cache, 1-10GbE, PCIe 3.0, UARTs, SPI, I2C, …
Radiation tolerance
• TID : 100 krad(Si)
• SEL : > 60 MeV.cm²/mg
• SEU/SEFI : Data available at 60 MeV.cm²/mg
Applications
• Image processing / Data crunching and compression
• Telecommunications with ultra-low latency
• On-Board decision making, including AI
• KU060 Companion Chip

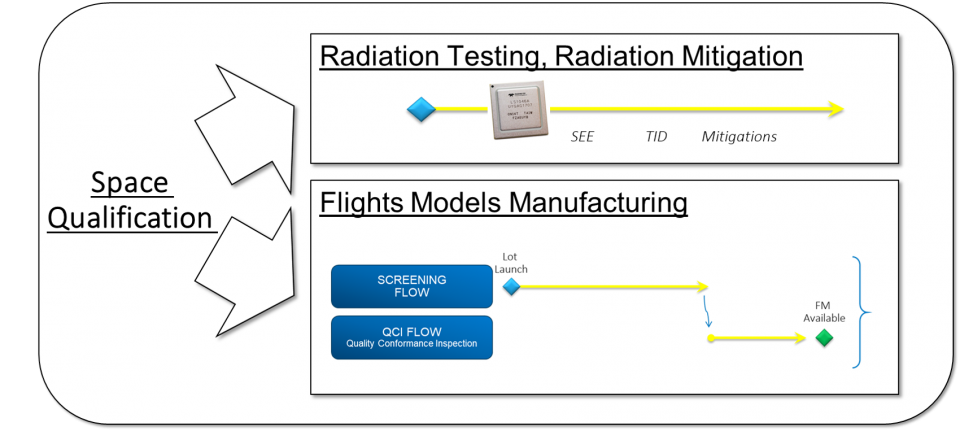

Sampling now with Teledyne e2v Space Specifics
• Reduced lead time – EMs available
• NASA Level 1 (NASA EEE-INST-002 – Section M4 – PEMs) & ECSS Class 1 (ECSS-Q-ST-60-13C)
