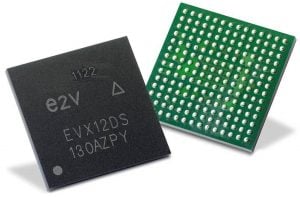

The EV12DS130xZP is a 12-bit 3 GSps DAC with an integrated 4:1 or 2:1 multiplexer, allowing easy interface with standard LVDS FPGAs.
The Noise Power Ratio (NPR) performance , which is 10 Bit equivalent at 3 GSPS, over more than 900 MHz instantaneous bandwidth, and the 70 dB linearity (SFDR, IMD) over full 1st Nyquist zone at 3 GSPS (NRZ feature), makes this product well suited for in high-end applications such as arbitrary waveform generators and broadband DDS systems.
Download DatasheetEV12DS130A/B Application Note
Type: PDF
EV12DS130B - Multi Component Synchronization
Type: PDF
EV12DS130xZP BDC Checklist
Type: PDF
EV12DS130xZP Board Layout
Type: PDF
EV12DS130xZP Datasheet
Type: PDF
EV12DS130xZP Flyer
Type: PDF
EV12DS130xZP User Guide
Type: PDF
Replacing EV12DS130A with EV12DS130B 2
Type: PDF
Using Ev1xds130b Higher Than 2.1Gsps 2
Type: PDF
| Nyquist Zone | Output Mode | NPR | ENOB |
| NZ1 | NRTZ | 51.3 dB | 10 bit |
| NZ1 | NRTZ | 55.7 dB | 10.8 bit |
| NZ2 | NRTZ or RTZ | 44.6 dB | 8.9 bit |
| NZ3 | RF | 42.5 dB | 8.6 bit |
Get in touch for technical specifications, pricing, and delivery information. Our team is ready to provide detailed support on product availability, timelines, testing protocols, and compliance.
