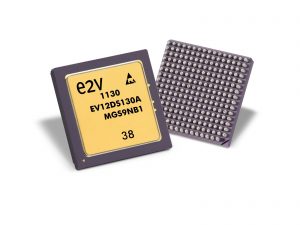

The EV12DS130xG is a 12-bit 3 Gsps DAC with an integrated 4:1 or 2:1 multiplexer, allowing easy interface with standard LVDS FPGAs
The Noise Power Ratio (NPR) performance , which is 10 Bit equivalent at 3 GSPS, over more than 900 MHz instantaneous bandwidth, and the 70 dB linearity (SFDR, IMD) over full 1st Nyquist zone at 3 GSPS (NRZ feature), makes this product well suited for high-end applications such as arbitrary waveform generators and broadband DDS systems.
Download DatasheetDS 60S 221070 (O)_EV12DS130AG_EV12DS130BG
Type: PDF
EV12DS130A Application Note
Type: PDF
EV12DS130A Errata Datasheet
Type: PDF
EV12DS130A Radiation Report (Protons)
Type: PDF
EV12DS130AGS User Guide
Type: PDF
EV12DS130B Application Note
Type: PDF
EV12DS130B Radiation Report
Type: PDF
EV12DS130xG BDC Checklist
Type: PDF
EV12DS130xG Board Layout
Type: PDF
EV12DS130xG Datasheet
Type: PDF
PV 160201 - 12b 3Gsps MuxDAC - ESCC 9000
Type: PDF
Qualification Report 12DS130B 12B 3Gsps Muxdac ESCC 9000
Type: PDF
Qualification Report 12DS130B 12B 3Gsps Muxdac QMLV
Type: PDF
Qualification Report EV12DS130A 12B 3Gsps MuxDAC ESCC 9000
Type: PDF
Qualification Report EV12DS130A 12B 3Gsps MuxDAC QMLV
Type: PDF
Replacing EV1XDS130A With EV1XDA130B
Type: PDF
Using EV1XDS130B Higher Than 2.1Gsps
Type: PDF
You must be logged in to download the below software or firmware. Please Sign In / Create an Account >>
EV12DS130 Spice Model Software
| Nyquist Zone | Output Mode | NPR | ENOB |
| NZ1 | NRTZ | 51.3 dB | 10 bit |
| NZ1 | NRTZ | 55.7 dB | 10.8 bit |
| NZ2 | NRTZ or RTZ | 44.6 dB | 8.9 bit |
| NZ3 | RF | 42.5 dB | 8.6 bit |
