EV12DD700
At any band up to Ka, System designers can now migrate more RF hardware to digital code than ever before.
Enabling unprecendented levels of dynamic RF system reconfiguration on the fly.

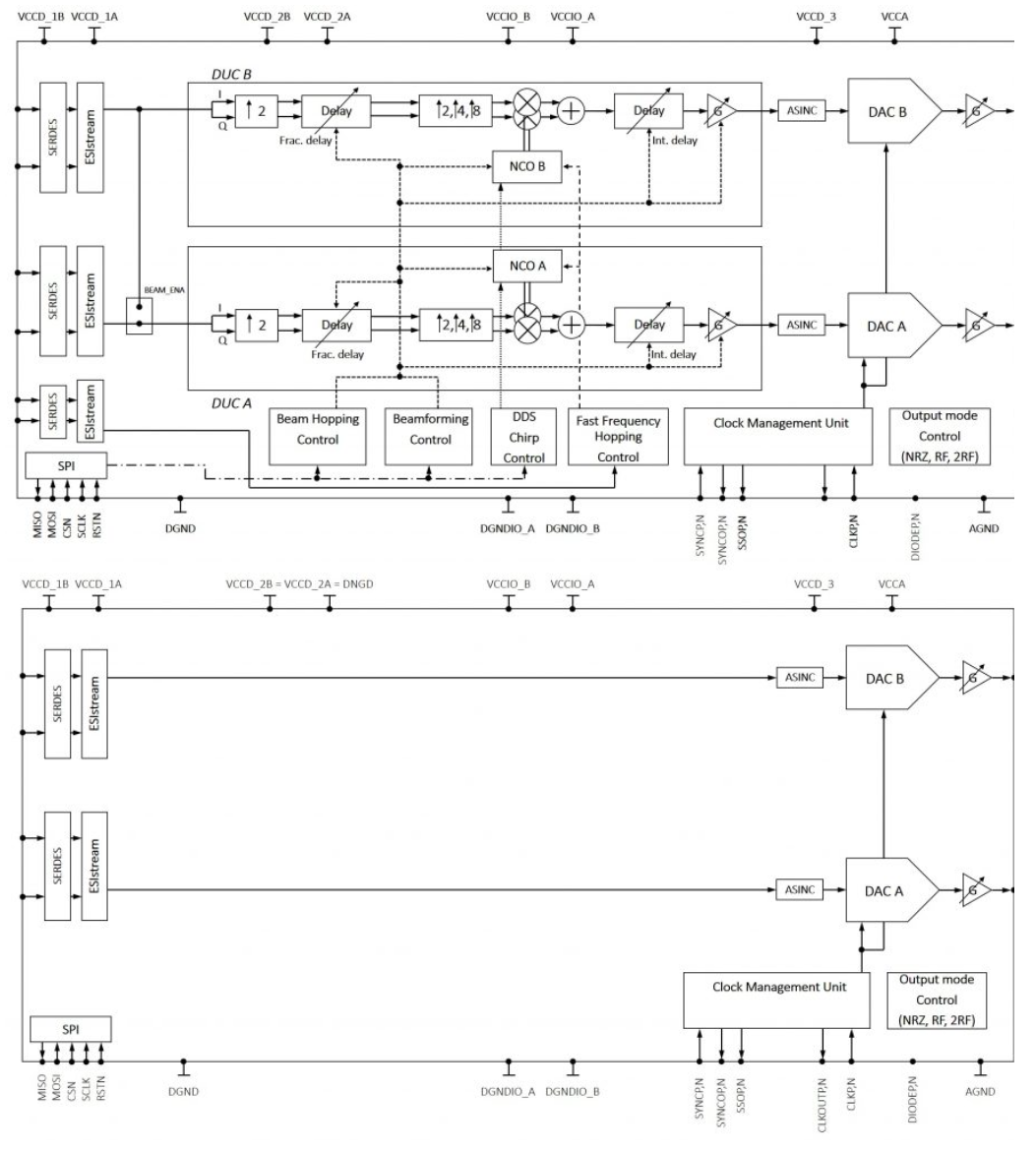

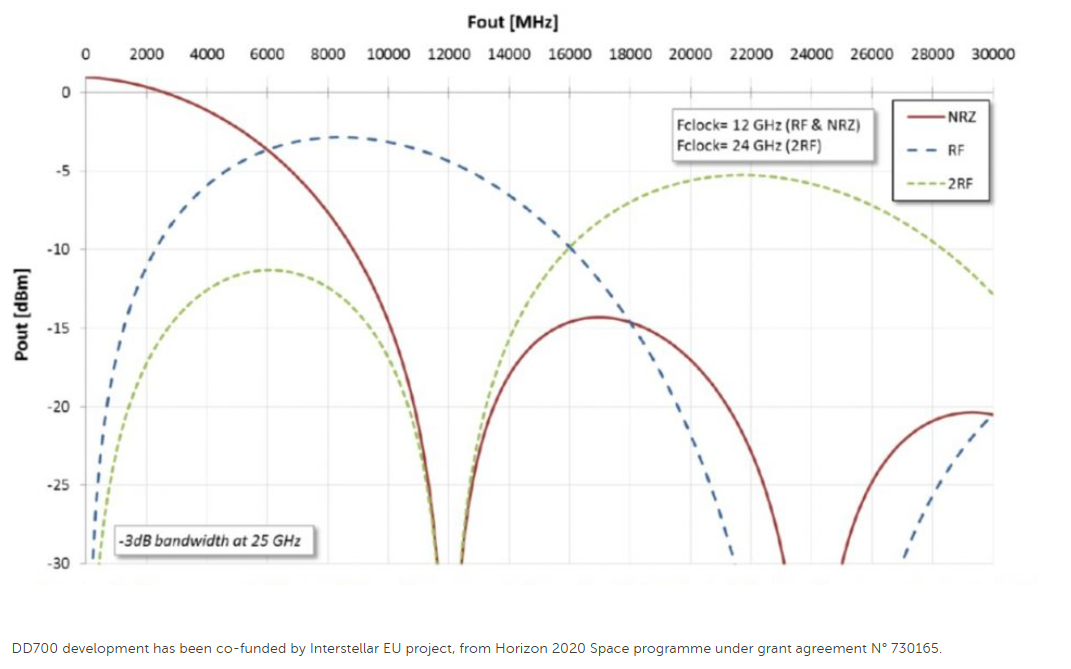

EV12DD700 dual-channel DACs are capable of operating up into Ka-band frequencies and support beamforming applications. They have a 25GHz output bandwidth with only 3dB attenuation being witnessed, and can go way beyond this with just a little over 3dB attenuation. Built into each DAC is an array of sophisticated signal processing functionality. This encompasses a programmable anti-sinc filter and direct digital synthesis (DDS) capabilities, as well as a programmable complex mixer. Also included is a digital up-converter (with four interpolation stages, plus sinc compensation).
